We manufacture C.V.T’s. (constant voltage transformers), of the resonant type, of all varieties, from 5VA to 10KVA. To have control and ability to finely control/vary outputs and make them Independent of Mains Frequency variation, we developed Flux Control by means of Electronic circuitry. The inherent reliability & robustness of C.V.T’s. is now incorporated in these products. All A.C. & D.C. C.V.T. based Products are manufactured in Controlled and Passive varieties.
Electronically Controlled C.V.T. based, D.C. & A.C. Products

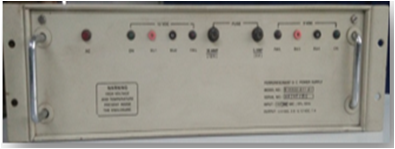

Passive D.C. Power Supplies :
All passive components, very rugged & high reliability, multiple D.C. o/p: from 5w to 5Kw ±10% against Freq., I/p variables & Load. Weight and size is large compared to Electronic D.C. Power Supplies
Passive A.C. Sinewave Regulators :
Stored energy gives instant o/p response to load changes. CVT resonant transformer & o/p filter gives o/p sine wave distortion <10% and o/p within ±8% against all variations, 25VA to 15KVA o/p VA.

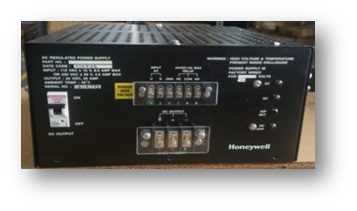

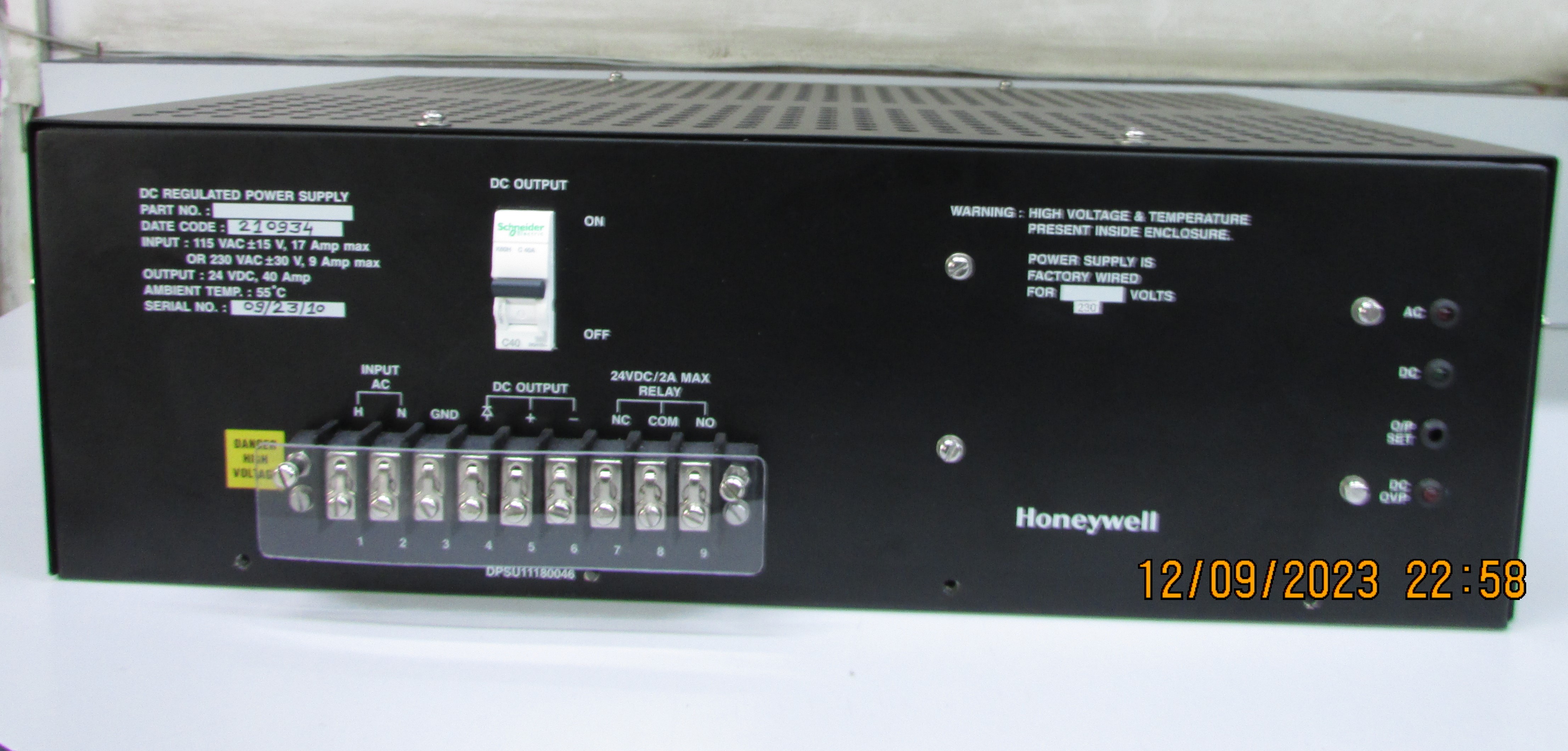

Regulated D.C. Power Supplies :
Stored energy gives instant o/p response to load changes. Transformer Flux being controlled electronically gives ruggedness & reliability. Controlled Flux gives precise o/p control. O/p Voltage within ±1% against all variables O/p Voltage within ±1% against all variables. 0/p 100 VA to 5KVA.
Regulated A.C. Sinewave Regulators :
Stored energy gives instant o/p response to load changes. CVT resonant transformer & o/p filter gives o/p sine wave. Transformer Flux being controlled electronically gives regulation, ruggedness & reliability. Controlled Flux gives precise o/p control. O/p Voltage within ±1% against all variables. 0/p 100 VA to 5KVA.
