Electronically Controlled C.V.T. based, D.C. & A.C. Products
We manufacture C.V.T’s. (constant voltage transformers), of the resonant type, of all varieties, from 5VA to 10KVA. To have control and ability to finely control/vary outputs and make them Independent of Mains Frequency variation, we developed Flux Control by means of Electronic circuitry. The inherent reliability & robustness of C.V.T’s. is now incorporated in these products. All A.C. & D.C. C.V.T. based Products are manufactured in Controlled and Passive varieties.
Passive D.C. Power Supplies :
All passive components, very rugged & high reliability, multiple D.C. o/p: from 5w to 5Kw ±10% against Freq., I/p variables & Load. Weight and size is large compared to Electronic D.C. Power Supplies
Passive A.C. Sinewave Regulators :
Stored energy gives instant o/p response to load changes. CVT resonant transformer & o/p filter gives o/p sine wave distortion <10% and o/p within ±8% against all variations, 25VA to 15KVA o/p VA.

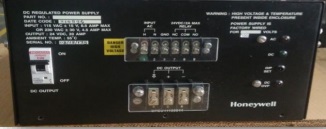

Regulated D.C. Power Supplies :
Stored energy gives instant o/p response to load changes. Transformer Flux being controlled electronically gives ruggedness & reliability. Controlled Flux gives precise o/p control. O/p Voltage within ±1% against all variables
Regulated A.C. Sinewave Regulators :
Stored energy gives instant o/p response to load changes. CVT resonant transformer & o/p filter gives o/p sine wave. Transformer Flux being controlled electronically gives regulation, ruggedness & reliability. Controlled Flux gives precise o/p control. O/p Voltage within ±1% against all variables. 0/p 100 VA to 5KVA.

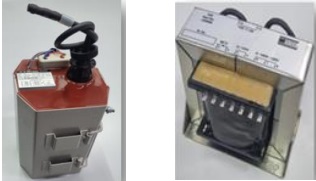

Product: Transformers & Inductors (part 1)
We manufacture C.V.T’s. (constant voltage transformers), of the resonant type, of all varieties, from 5VA to 10KVA. To have control and ability to finely control/vary outputs and make them Independent of Mains Frequency variation, we developed Flux Control by means of Electronic circuitry. The inherent reliability & robustness of C.V.T’s. is now incorporated in these products. All A.C. & D.C. C.V.T. based Products are manufactured in Controlled and Passive varieties.

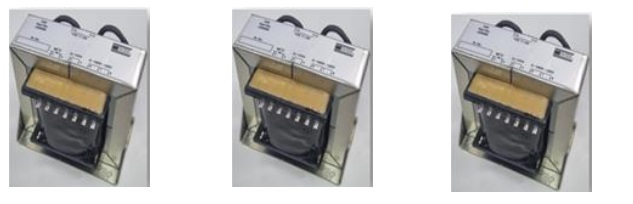

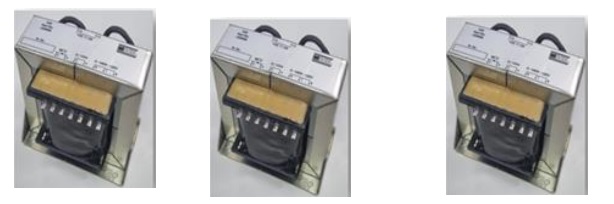

1 Phase Transformer Types (Supply frequency, rating: 2.5VA to 25 KVA) :
Isolation, Auto, Step-up, Step-Down, multi o/p, Buck-Boost, PCB Mounting, Current , High Voltage, High Current, Coupling, Audio, Toroidal Single/ Dual core, Grounding/Earthing, Impedance matching, Pulse, Cast, Control, Core / Shell Type, Air Gap, Current Limiting, Sensing, Inverter, UPS, Very Low Freq. (4Hz ), CVT transformers for DC & AC applications, etc.

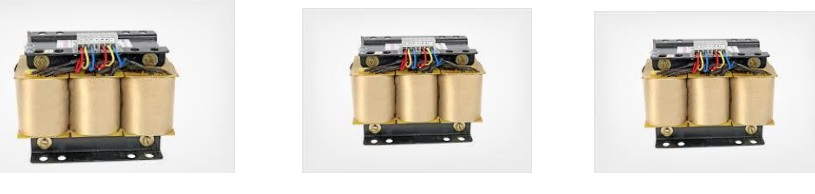

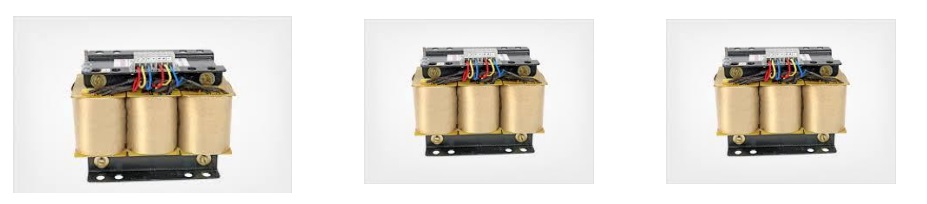

3 Phase Transformer Types: (Supply frequency, rating: 10 VA to 100 KVA) :
Isolation, Auto, Step-up, Step-Down, multi o/p, 3Q to 1Q, Grounding / Earthing, Different Configurations of Primary & Secondary, Current Limiting, Control, Rectifier, ‘C’ Core, Core & Shell Types,
Special Purpose Transformer Types :
Phase shift , PCB mounting , Pulse/spot welding, 400 Hz metal core, Portable Welding , CVT Trf., Toroidal core, ‘C’ core , Medium Freq. & High Freq. metal core, Constant Current Transformer 50/60 Hz & Up to 500Amps, current limiting, capacitor charging, spot welding, UV Tube Ballasting, etc
Inductor Types :
Width/thickness wound, Induction Heating, ac + passing dc inductors, Variable mechanically, Variable by AC/DC current, High Power Inverters & converters, Resonating and Filtering Inductors at different frequencies, Power Factor correction, current limiting, Ripple Filter, Ballasting, etc
All Electronic Products
Introduction

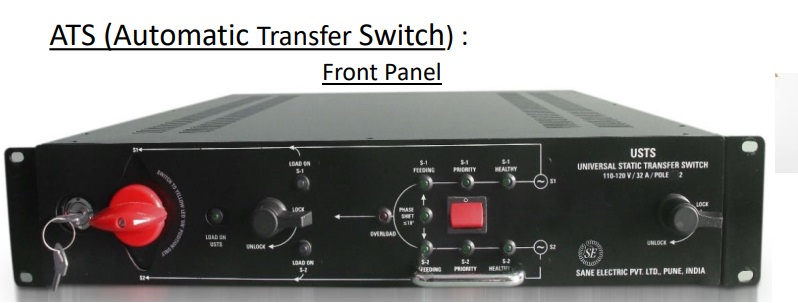

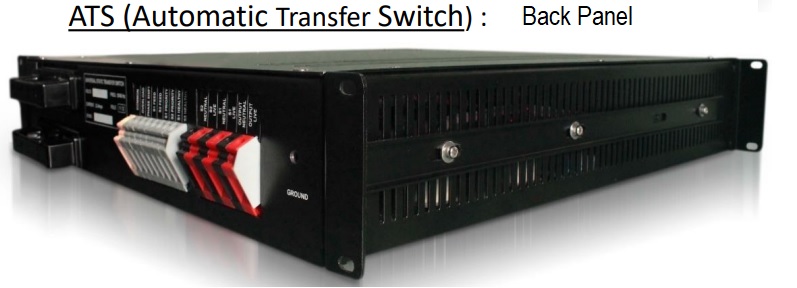

This “Universal Static Transfer Switch” (USTS), is a Single Pole (Neutrals Common)
automatic static transfer switching unit designed to provide fast automatic
transfers between two independent, synchronous or asynchronous AC power
sources to provide continuity of AC power to critical equipment, such as
information technology equipment, process control equipment, etc.
One of the two AC inputs is designed as the “preferred” source to which the USTS
will connect the load as long as the designated input source is within the
acceptable limits, the USTS is designed to transfer the output load to the
alternate input source, if the alternate source is within provides the acceptable
voltage limits.
The USTS fast, Make-before-break transfers, between the two sources and prevents
interphase currents during transfers between the two sources.
The control circuitry ensures that the transfer time is within the tolerance of IEEE
Standard 446 susceptibility curve for Information Technology Equipment to allow uninterrupted
load equipment operation.
In case of overload and phase shift the USTS gives indication only on front panel.
Green colour indicates healthy condition and Red colour is for out of range condition.
Under Short-circuit condition the fuses in series with the Sources protect source
and the load.
Manual Bypass Switch:
The entire power static switch module is hot swappable. Before removing this
module the load is transferred, without break to any one of the sources by using
the Manual bypass switch, which is of Make before Break type. After replacing
the static switch module, the load is restored on static switch module, using the
Manual bypass switch.
Electromagnetic Products
We Tried to develop Special Purpose Transformers and also Indigenize them. Many Projects were undertaken from time to time. During the course of these Projects we developed; (i) Nitrogen Annealing facility for Magnetic Materials, (ii) Slitting facility for Magnetic steel sheets and rolls, (iii) Shearing Facility for magnetic sheets, (iv) Automatic and Manual Presses for Stamping and Lamination Dies. To these facilities was added electrical and Electronic Instruments and active and Passive Loads for Variety of Testing
Features
Check our Products
We manufacture C.V.T’s. (constant voltage transformers), of the resonant type, of all varieties, from 5VA to 10KVA. To have control and ability to finely control/vary outputs and make them Independent of Mains Frequency variation, we developed Flux Control by means of Electronic circuitry. The inherent reliability & robustness of C.V.T’s. is now incorporated in these products. All A.C. & D.C. C.V.T. based Products are manufactured in Controlled and Passive varieties.
Introduction This “Universal Static Transfer Switch” (USTS), is a Single Pole (Neutrals Common) automatic static transfer switching unit designed to provide fast automatic transfers between two independent, synchronous or asynchronous AC power sources to provide continuity of AC power to critical equipment, such as information technology equipment, process control equipment, etc. One of the two AC inputs is designed as the “preferred” source to which the USTS will connect the load as long as the designated input source is within the acceptable limits, the USTS is designed to transfer the output load to the alternate input source, if the alternate source is within provides the acceptable voltage limits.
We Tried to develop Special Purpose Transformers and also Indigenize them. Many Projects were undertaken from time to time. During the course of these Projects we developed; (i) Nitrogen Annealing facility for Magnetic Materials, (ii) Slitting facility for Magnetic steel sheets and rolls, (iii) Shearing Facility for magnetic sheets, (iv) Automatic and Manual Presses for Stamping and Lamination Dies. To these facilities was added electrical and Electronic Instruments and active and Passive Loads for Variety of Testing
